An accessory designed to be as low as possible while retaining a compact structure to guarantee the precision and steadiness that are necessary for this type of appliance in order to satisfy today’s requirements and applications of the modern mechanical industry.
The prismatic adjustable slideways and all faces are properly ground.
The trapezoidal thread lead screw is mounted on double-acting thrust bearings and can be adjusted axially. Both movements have an independent locking system and a zero-setting graduated ring (graduation = 0.1 mm linear displacement of the axis). Parallelism, squareness and screw pitch are carefully checked in order to ensure the precision needed by this type of equipment. The table comes with an instruction and service manual.
Technical data
Material: G26 cast iron UNI 5007
Breacking load Rmin = 26
Elongation %: A% = 1
Brinell hardness: HB = 190÷240

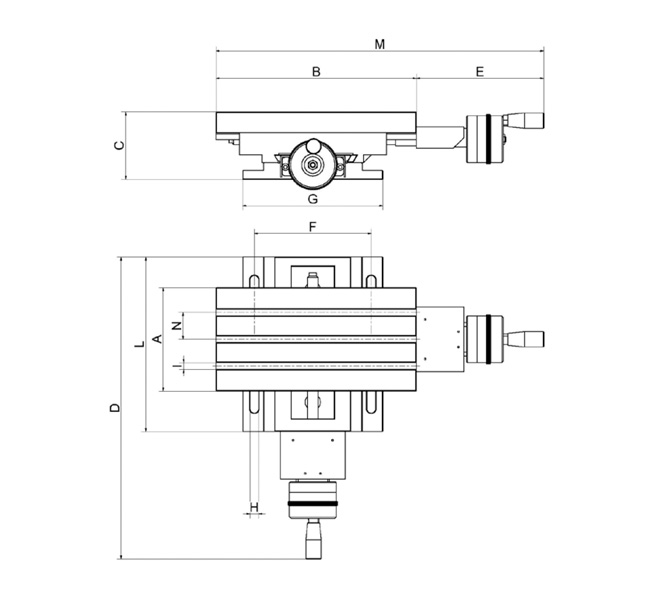

| TYPE | 200 | 300 | 400 | 500 | 600 |
|---|---|---|---|---|---|
| A | 155 | 165 | 202 | 250 | 300 |
| B | 300 | 380 | 500 | 600 | 752 |
| C | 100 | 105 | 128 | 128 | 148 |
| D | 453 | 529 | 668 | 769 | 900 |
| E | 190 | 190 | 270 | 270 | 270 |
| F | 175 | 184 | 240 | 294 | 360 |
| G | 210 | 220 | 280 | 338 | 410 |
| H | 13 | 13 | 16 | 16 | 16 |
| I | 10H7 | 10H7 | 10H7 | 14H7 | 14H7 |
| L | 263 | 339 | 398 | 499 | 630 |
| M | 490 | 570 | 770 | 870 | 1020 |
| N | 40 | 41 | 53 | 64 | 95 |
| O* | 3 | 3 | 3 | 3 | 3 |
| P** | 200 | 270 | 310 | 400 | 500 |
| Q*** | 235 | 315 | 410 | 500 | 610 |
| WEIGHT KG | 23 | 35 | 66 | 93 | 162 |
Note: Features and dimensions are subject to change.
*number of grooves
**transversal stroke
***longitudinal stroke

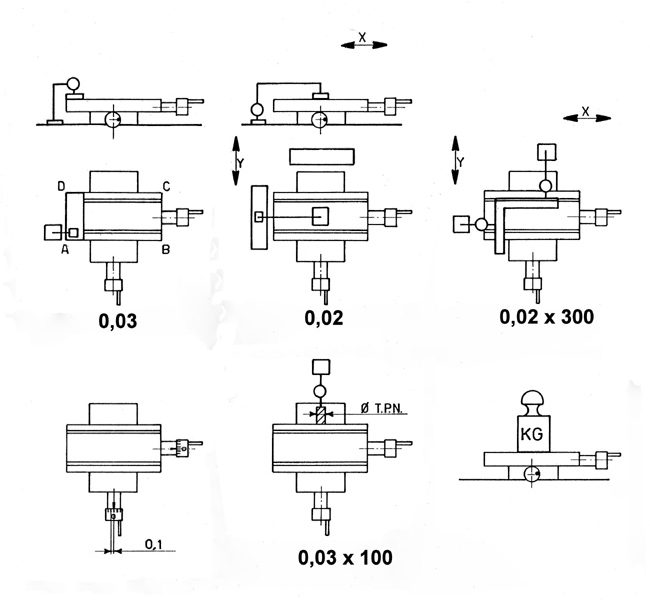

| TYPE | 200 | 300 | 400 | 500 | 600 |
|---|---|---|---|---|---|
| ø T.P.N. | 16x4 | 16x4 | 20x4 | 20x4 | 25x5 |
| KG | 135 | 200 | 300 | 450 | 600 |
Note: Features and dimensions are subject to change.
