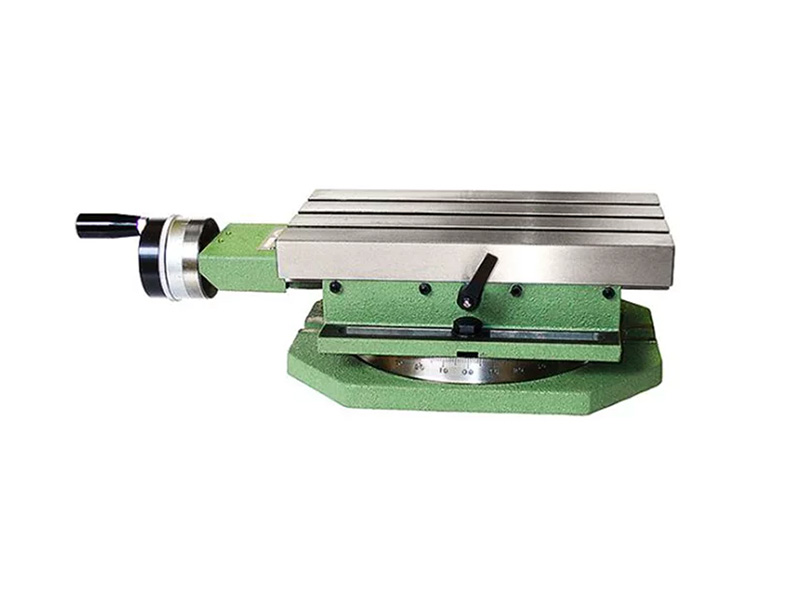

This features the characteristics of the TL/86 model combined with a graduated 360° revolving base that allows the complete rotation of the entire table around the vertical axis.
The lower surface of the revolving base is fully ground and features a longitudinal alignment groove.
Technical data
Material: G26 cast iron UNI 5007
Breacking load Rmin = 26
Elongation %: A% = 1
Brinell hardness: HB = 190÷240

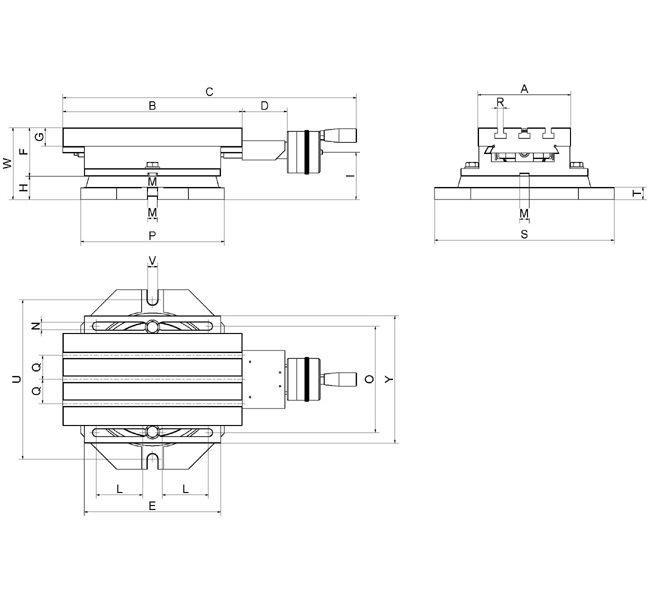

| TYPE | 200 |
|---|---|
| A | 155 |
| B | 300 |
| C | 491 |
| D | 75 |
| E | 228 |
| F | 81 |
| G | 31 |
| H | 39 |
| I | 79 |
| L | 77 |
| M | 16H7 |
| N | 13 |
| O | 178 |
| P | 240 |
| Q | 40 |
| R | 10H7 |
| S | 300 |
| T | 20.5 |
| U | 266 |
| V | 17 |
| W | 120 |
| X* | 210 |
| Y | 213 |
| WEIGHT KG | 27 |
Note: Features and dimensions are subject to change.
*total stroke

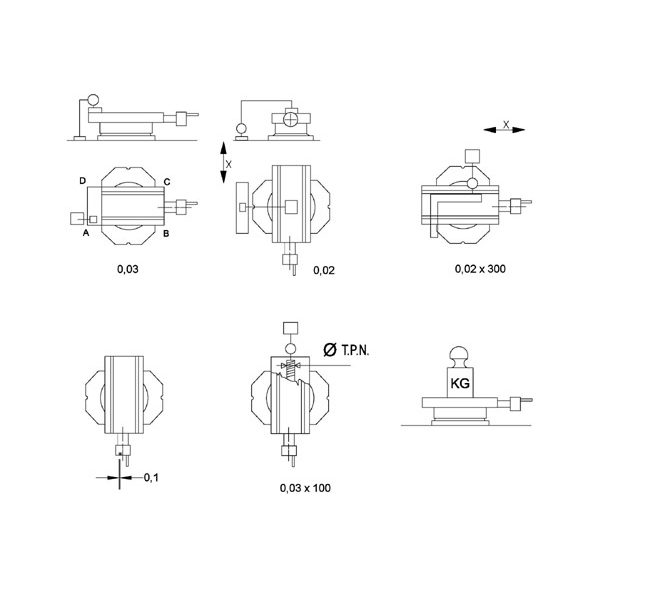

| TYPE | 200 |
|---|---|
| ø T.P.N. | 16x4 |
| KG | 150 |
Note: Features and dimensions are subject to change.
