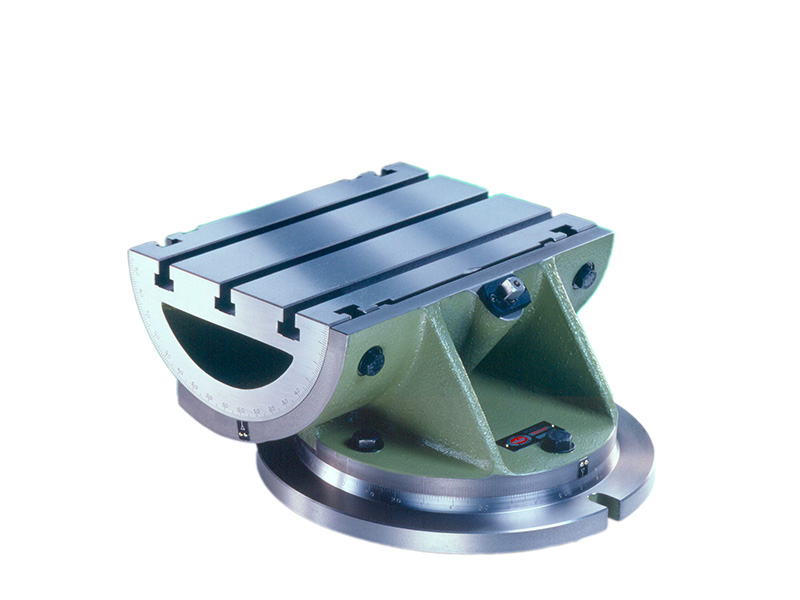

The sturdy and compact structure of this equipment can easily tolerate even the greatest stress caused by different machining operations. This surface can be tilted 90° compared to the “0°” position just on one side and the entire unit can rotate about itself through 360°.
Tilting is made possible by a worm/ring-gear coupling carved in the cradle. All faces and sliding planes are properly ground and fitted with two different locking systems for rotation and tilting.
Technical data
Material: G26 cast iron UNI 5007
Breacking load Rmin = 26
Elongation %: A% = 1
Brinell hardness: HB = 190÷240

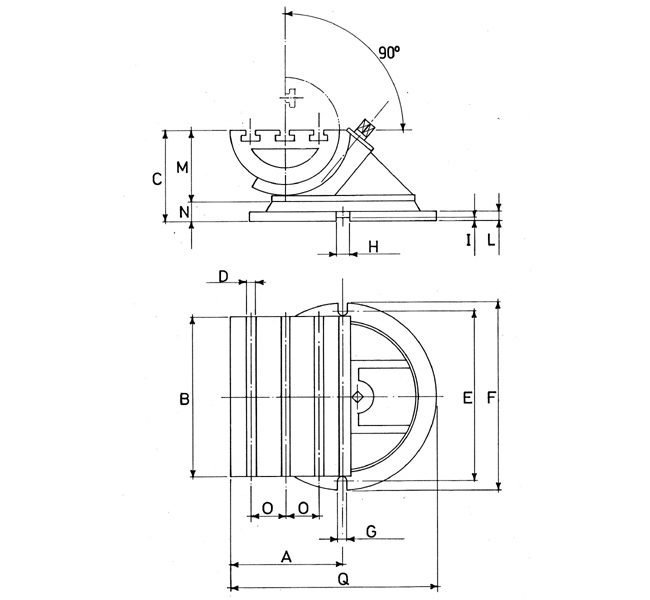

| TYPE | 180 | 240 | 350 |
|---|---|---|---|
| A | 180 | 240 | 350 |
| B | 260 | 350 | 550 |
| C | 147 | 183 | 258 |
| D | 10H7 | 14H7 | 14H7 |
| E | 250 | 316 | 430 |
| F | 280 | 350 | 470 |
| G | 16 | 16 | 18 |
| H* | 16H7 | 16H7 | 16H7 |
| I | 6 | 6 | 6 |
| L | 18 | 20 | 23 |
| M | 115 | 149 | 212 |
| N | 32 | 34 | 46 |
| O | 51 | 75 | 90 |
| P** | 3 | 3 | 3 |
| Q | 318 | 405 | 570 |
| WEIGHT KG | 35 | 69 | 193 |
Note: Features and dimensions are subject to change.
*centering groove on base
**number of grooves

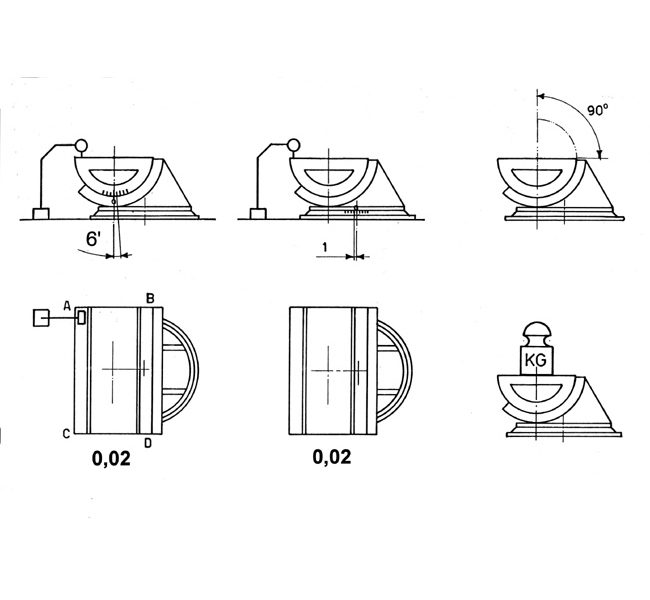

| TYPE | 180 | 240 | 350 |
|---|---|---|---|
| KG | 200 | 350 | 500 |
Note: Features and dimensions are subject to change.
