This revolving base can be installed on all models of modular vices type MU/90, MUC/91, MUC/91-D, MAP/78-N, MOM/74-N, MIR/75-N, MRA/87-N and allows a 360° rotation of the entire vice.
A very important feature is that the revolving base can be positioned right in the centre compared to the opening of the vice by sliding the entire base on a special guide found on the base.
This movement, which can be independently locked from the rotation, makes it possible to clamp workpieces in conditions which are more favourable for the vice, reducing the bending of its base thus guaranteeing greater precision and repeatability of the machining.
The lower part has a groove for the alignment when installing the base on the machine tool. All faces and sliding parts are ground.
Technical data
Material: GS 600-3 nodular cast iron UNI 4544
Breacking load Rmin = 61
Elongation%: A% = 3
Brinell hardness: HB = 190÷270

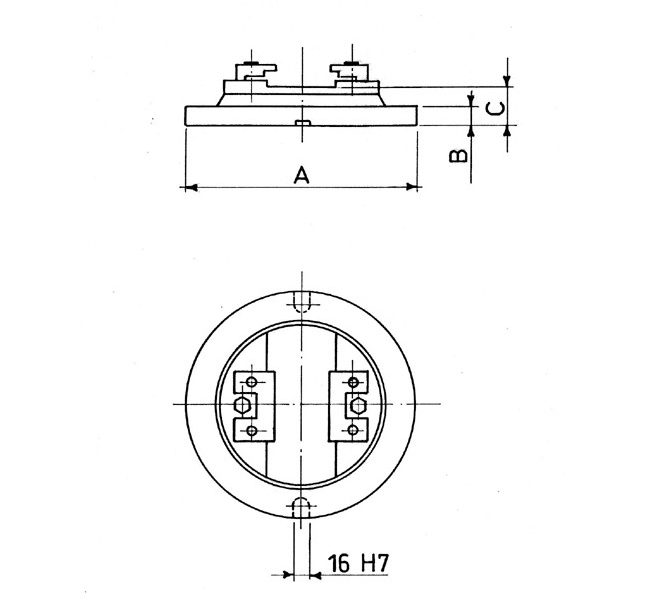

| TYPE | 100 | 125 | 150 | 175 | 200 |
|---|---|---|---|---|---|
| A | 125 | 255 | 305 | 335 | 390 |
| B | 18 | 18 | 18 | 21 | 21 |
| C | 37 | 37 | 37 | 40 | 40 |
| WEIGHT KG | 9 | 13 | 17 | 29 | 35 |
Note: Features and dimensions are subject to change.
