Suitable to be installed on modular vices model MAP/78-N, MOM/74-N, MIR/75-N, MRA/87-N, MU/90, MUC/91 and MUC/91D These parallels can be fixed to intermediate jaws that can be installed on the modular vices for multiple clamping of workpieces; the workpieces can be gripped at a given height from the vice base guaranteeing precision and repeatable positioning.
They are made of casehardened, tempered and properly ground steel; available in different heights.
Examples of mounting of parallels
Technical data
Material: UNI 18 NiCrMo5
Features: Hardened HRC 56/58 ±2 Steel

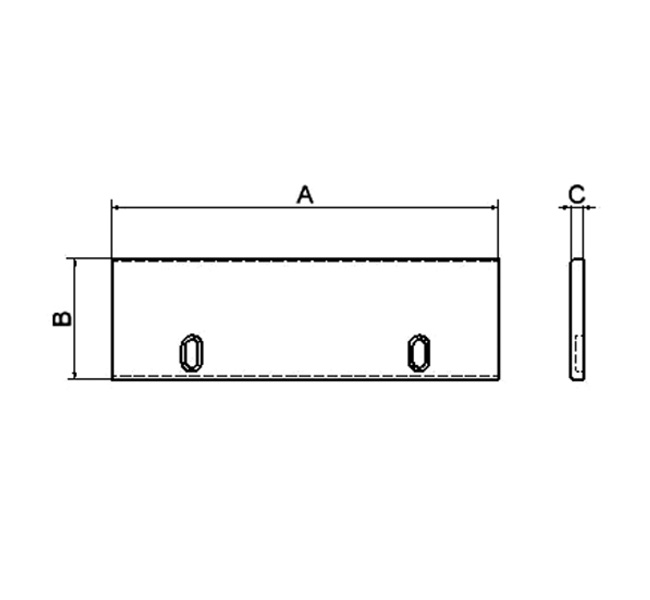

| TYPE | 100 | 125 | 150 | 175 | 200 |
|---|---|---|---|---|---|
| A | 99.5 | 124.5 | 149.5 | 174.5 | 199.5 |
| B | 44-42-40-37-35-32-27-22-19-17 | 49-47-45-42-37-32-27-22-17-14 | 49-47-45-42-37-32-27-22-17-14 | 54-52-50-47-42-37-32-27-22-19 | 54-52-50-47-42-37-32-27-22-19 |
| C | 5 | 5 | 5 | 5 | 5 |
Note: Features and dimensions are subject to change.
