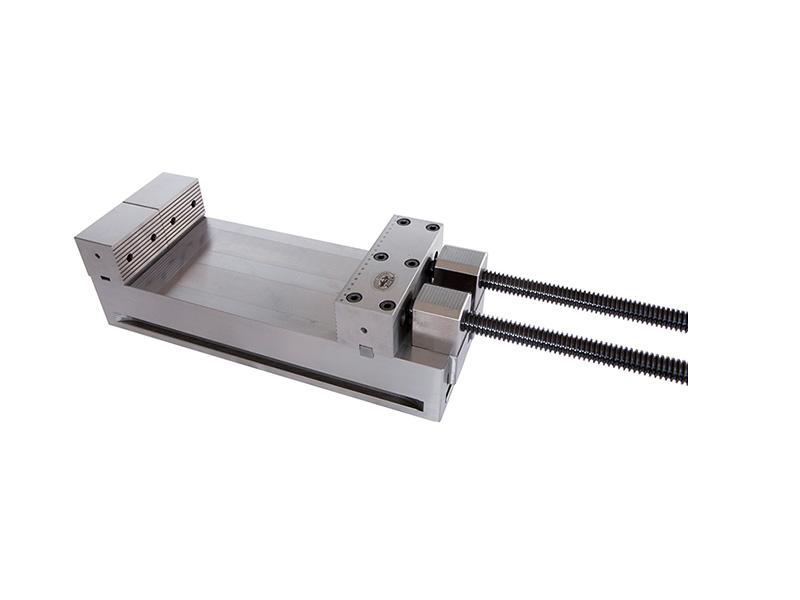

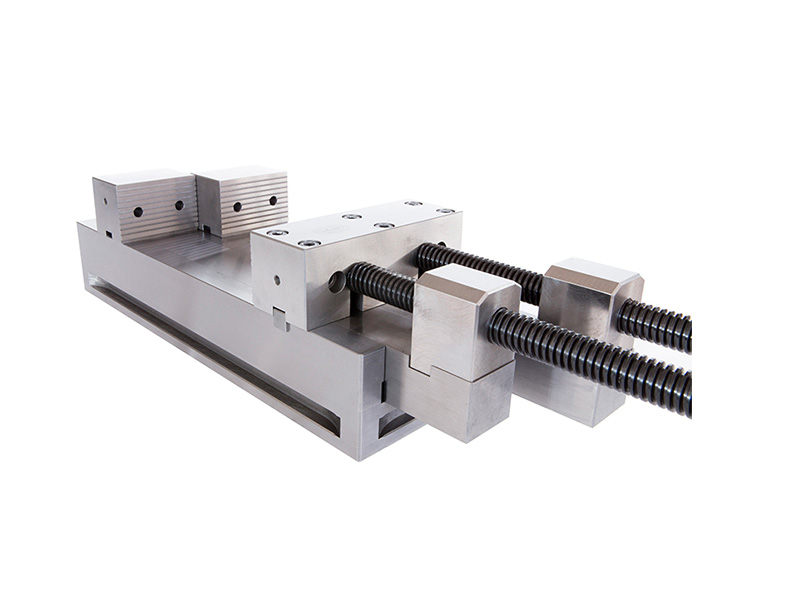

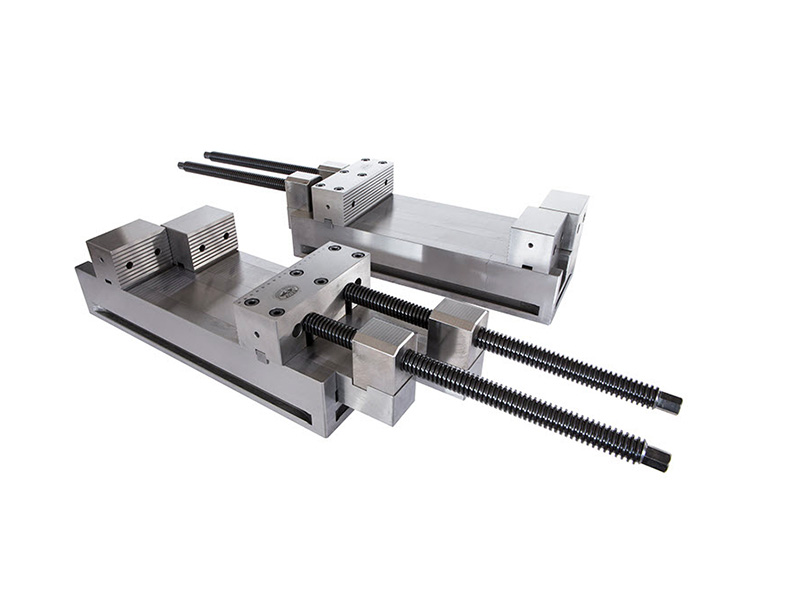

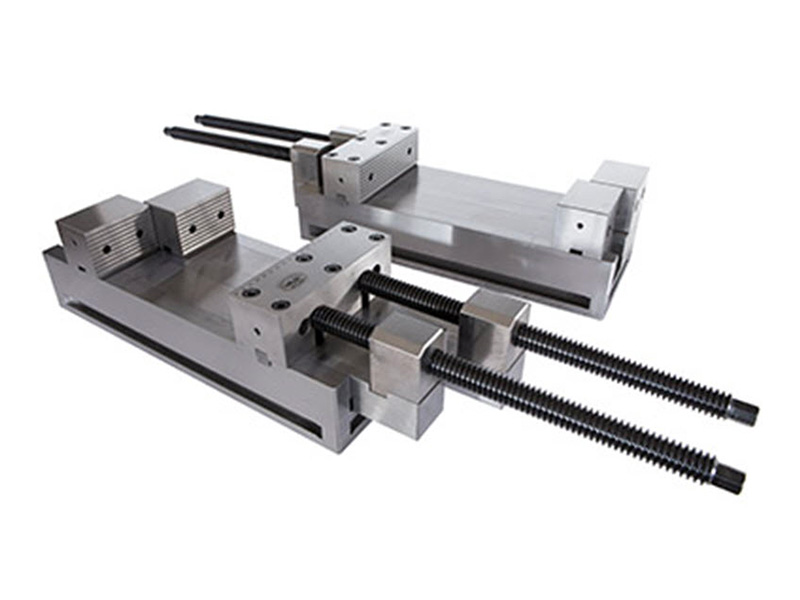

Model that comes from model MVC /1V and preserves its constructive features, the ram and the fixed and mobile jaw locks are made of heat treated steel, the base is made of GS500 spheroidal cast iron.

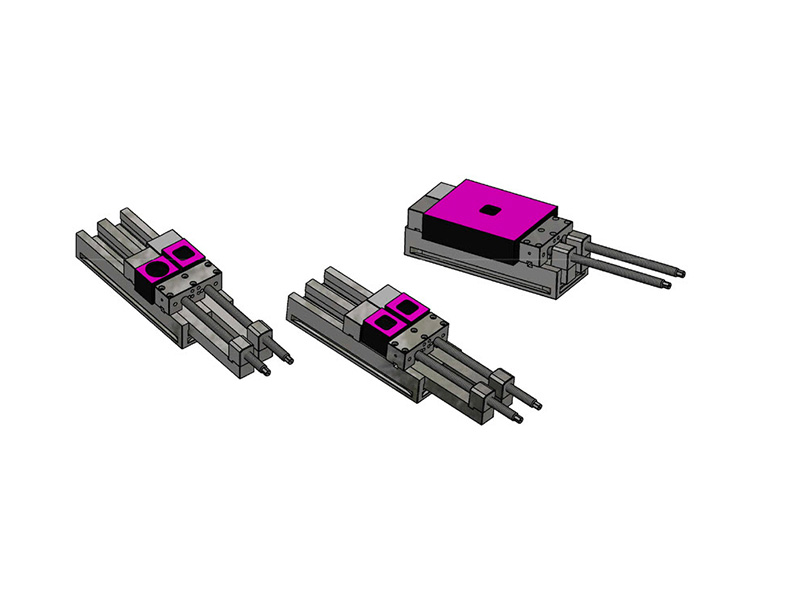

Thanks to the independent mobile double jaw it is possible the tightening of two pieces at the same time also of different forms and dimensions
When vice grips only one piece the clamping is remarkably improved thanks to the double lock that provides the same results of the use of two vices and so the holding power is doubled (up to 9000 kg).
The vice can be provided with special equipment as ground magnetic parallels or knurled jaws suitable for blanks clamping or irregular surfaces.
The vice comes with reversible ratchet wrench and 4 brackets for clamping the vice on the machine tool plane.
Technical data
Material: Spheroidal Cast Iron GS500 / Hardened steel
Features: Maximum 4500 kg for single jaw = 4500kg x 2 = 9000kg

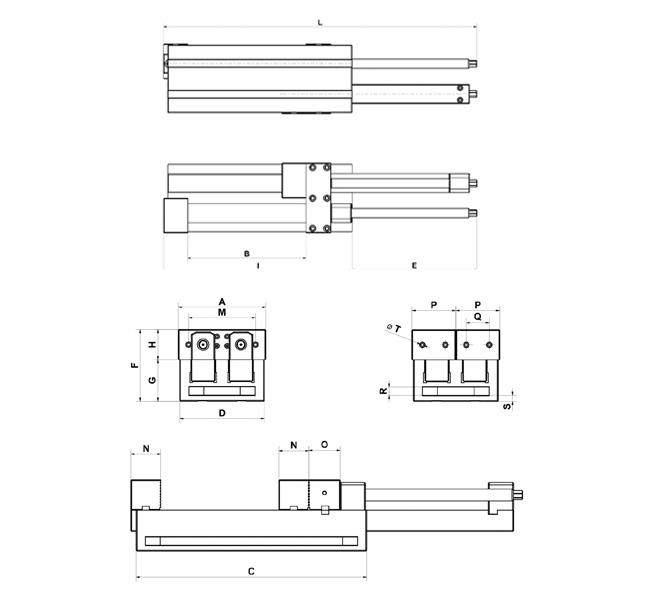

| A | 190 |
|---|---|
| B | 321 |
| C | 500 |
| D | 184 |
| E | 338 |
| F | 155 |
| G | 90 |
| H | 65 |
| I | 511 |
| L | 849 |
| M | 145.3 |
| N | 65 |
| O | 68 |
| P | 95 |
| Q | 50 |
| R | 18 |
| S | 13 |
| T | 6.5 |
| WEIGHT KG | 77 |
Note: Features and dimensions are subject to change.
