The mechanical specifications of this vice are the same as those of the manual MTF/59 model.

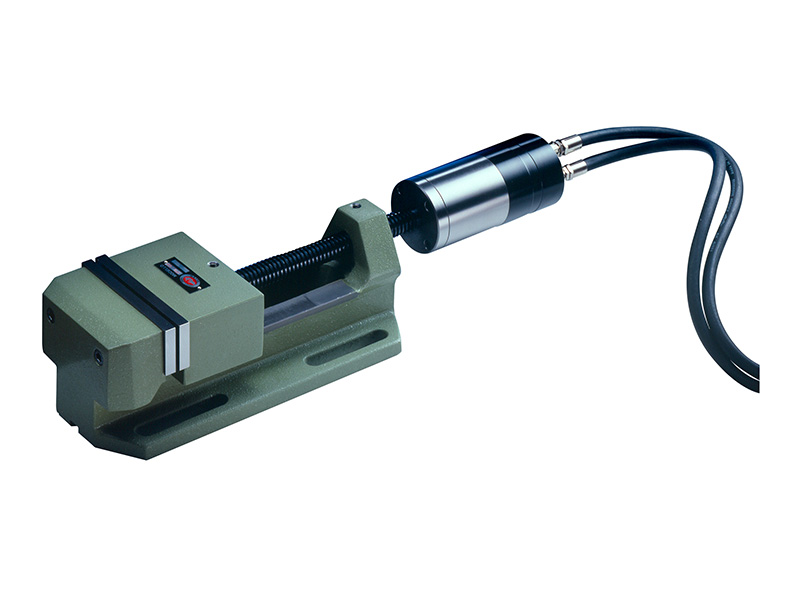

A hydropneumatic cylinder controls the automatic opening and closing of the vice through a pedal valve; this type of vice is essential for mass production machining operations, not exceptionally heavy milling and drilling operations.

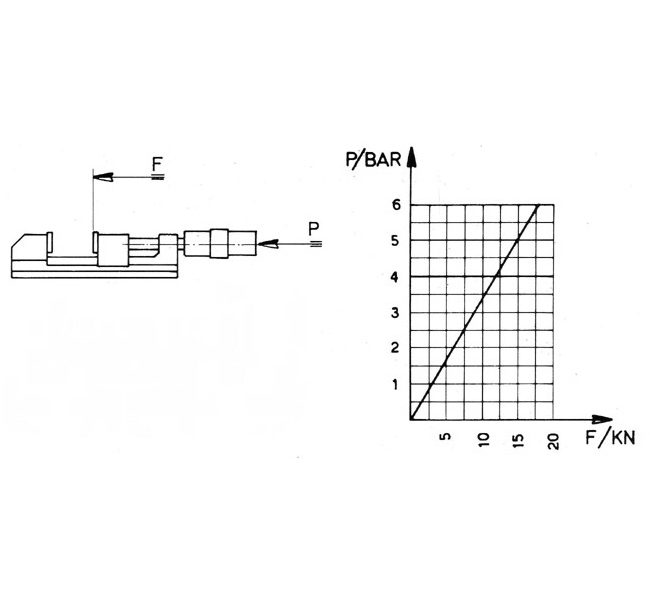

The hydropneumatic unit operates on compressed air, max. 6 bar, and the clamping force obtained by the intensification of air/oil goes from 0 to 1800 kg and can be adjusted by reducing incoming air pressure.
The automatic closing stroke is purposely limited to about 4 mm in order to comply with the accident prevention standards.
This model is fitted with ground flat jaws made of casehardened and tempered steel.

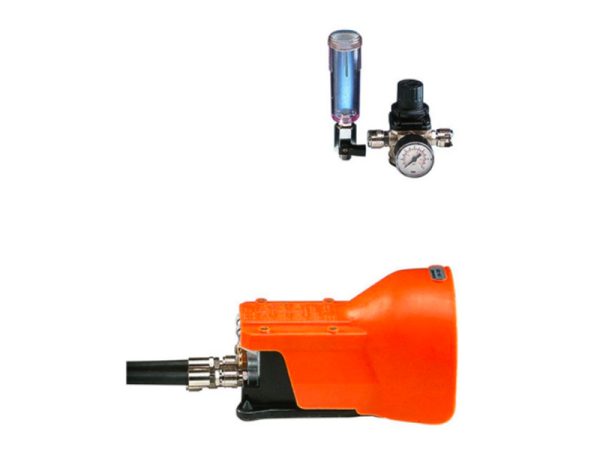

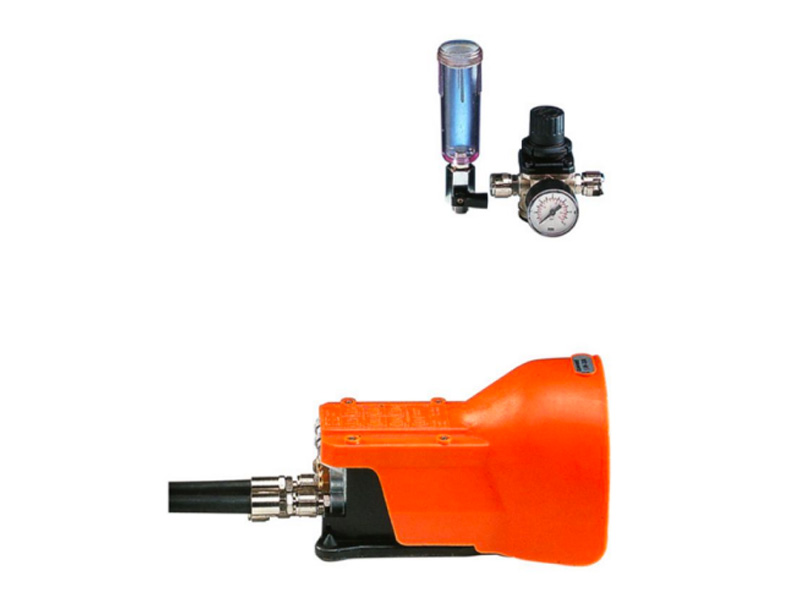

The vice comes ready for use with the pedal pump, pressure reducer with gauge and rubber tubes
Technical data
Material: Cast iron G26 UNI 5007
Breaking Load: Rmin = 26
Elongation %: A% = 1
Brinnel hardness: HB = 190÷240

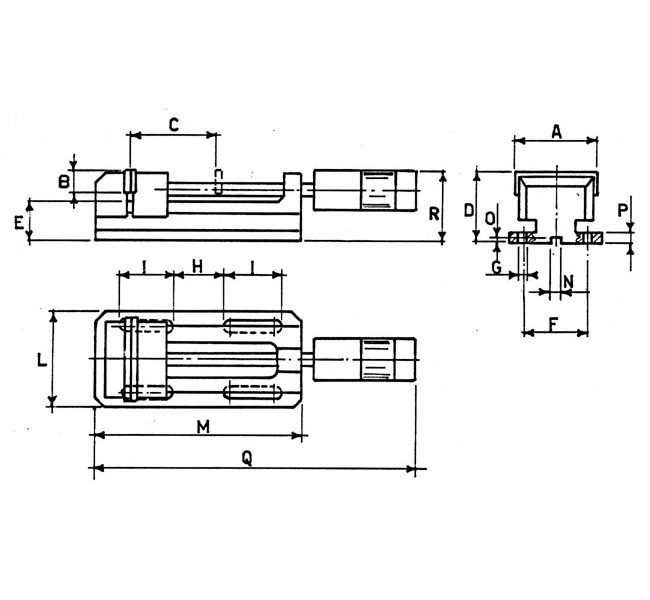

| TYPE | 125 | 150 | 175 |
|---|---|---|---|
| A | 125 | 150 | 175 |
| B | 50 | 50 | 50 |
| C | 140 | 155 | 190 |
| D | 130 | 130 | 130 |
| E | 76.5 | 70 | 70 |
| F | 104 | 120 | 140 |
| G | 17 | 17 | 17 |
| H | 84 | 102 | 73 |
| I | 92 | 102 | 127 |
| L | 140 | 170 | 190 |
| M | 345 | 375 | 418 |
| N | 16H7 | 16H7 | 16H7 |
| O | 6 | 6 | 6 |
| P | 17 | 19 | 19 |
| Q | 550 | 610 | 635 |
| R | 136 | 136 | 136 |
| WEIGHT KG | 24 | 28 | 33 |
Note: Features and dimensions are subject to change.
| TYPE | 125 | 150 | 175 |
|---|---|---|---|
| AUTOMATIC STROKE | 3.5 | 3.5 | 3.5 |
| CLOSING TIME | 1" | 1" | 1" |
| P/BAR MAX | 6 | 6 | 6 |
Note: Features and dimensions are subject to change.
