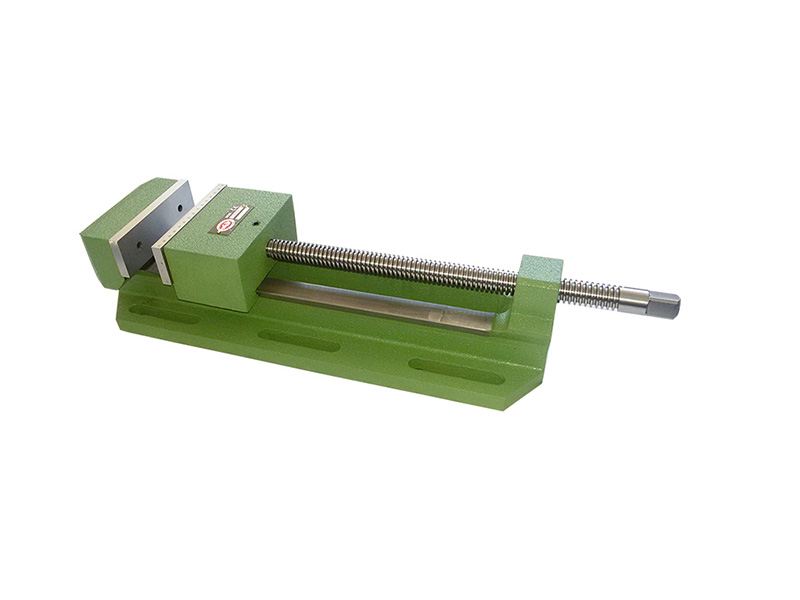

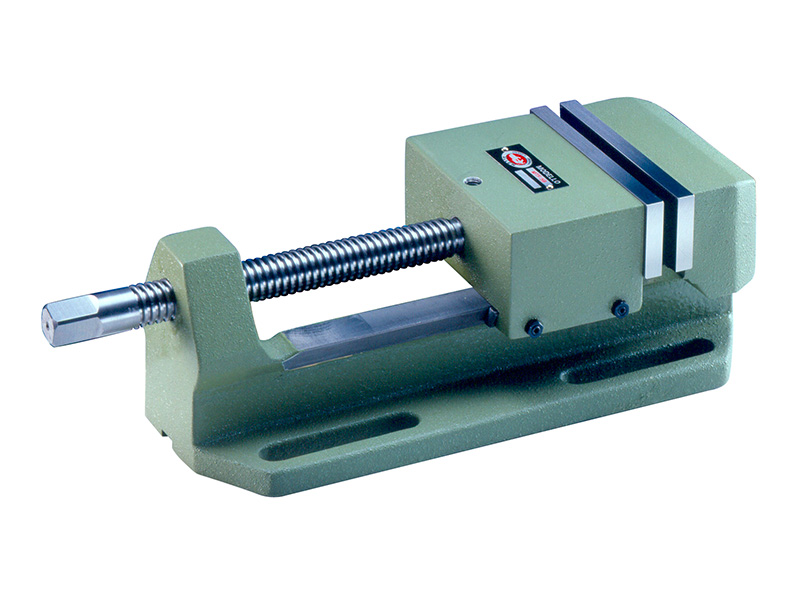

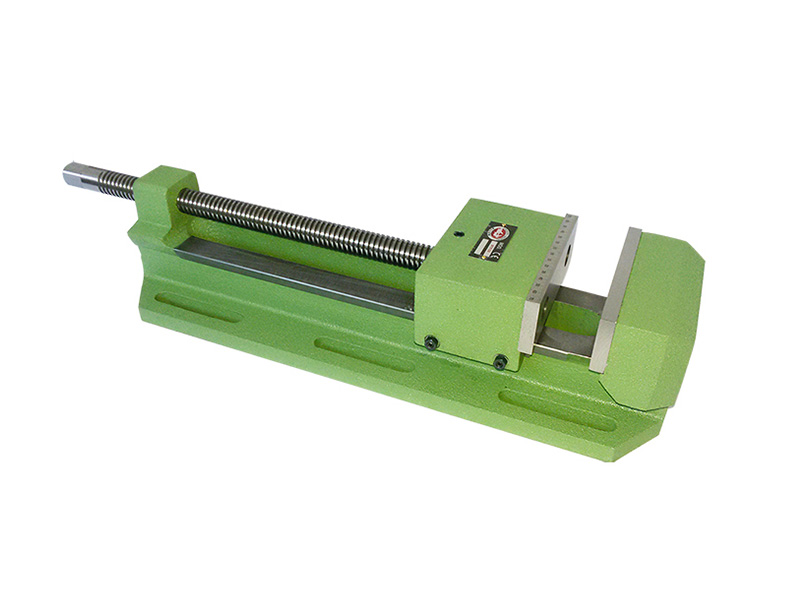

A solid, sturdy and versatile vice suitable for light and not exceptionally heavy machining operations, especially drilling and punching, and for average chip removing milling operations.
It is fitted with prismatic adjustable slideways.

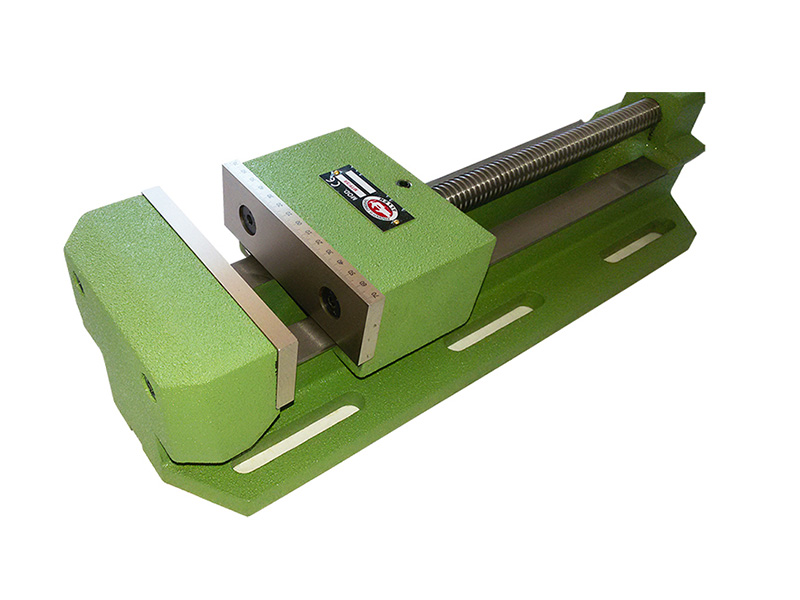

A central slit on the body of the vice allows the tool to work through the piece from side to side without damaging the vice. This model is fitted with ground flat jaws made of casehardened and tempered steel.
Prismatic jaws to clamp cylindrical pieces are available on request.
Technical data
Material: Cast iron G26 UNI 5007
Breaking load: Rmin = 26
Elongation %: A% = 1
Brinell hardness: HB = 190÷240

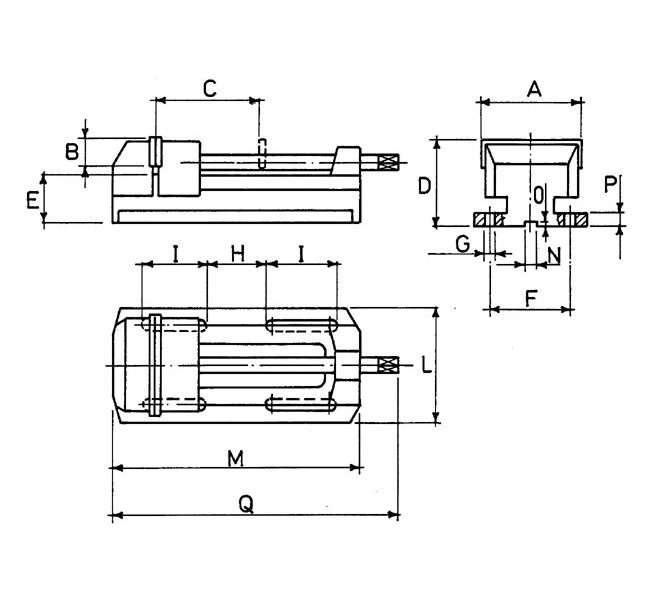

| TYPE | 125 | 150 | 150AP310 | 175 |
|---|---|---|---|---|
| A | 125 | 150 | 150 | 175 |
| B | 50 | 50 | 50 | 50 |
| C | 140 | 155 | 310 | 190 |
| D | 130 | 130 | 130 | 130 |
| E | 76.5 | 70 | 70 | 70 |
| F | 104 | 120 | 120 | 140 |
| G | 17 | 17 | 17 | 17 |
| H | 84 | 102 | 94 | 73 |
| I | 92 | 102 | 85 | 127 |
| L | 140 | 170 | 170 | 190 |
| M | 345 | 375 | 530 | 418 |
| N | 16H7 | 16H7 | 16H7 | 16H7 |
| O | 6 | 6 | 6 | 6 |
| P | 18 | 19 | 20 | 20 |
| Q | 410 | 440 | 640 | 485 |
| WEIGHT KG | 20 | 24 | 29 | 29 |
Note: Features and dimensions are subject to change.

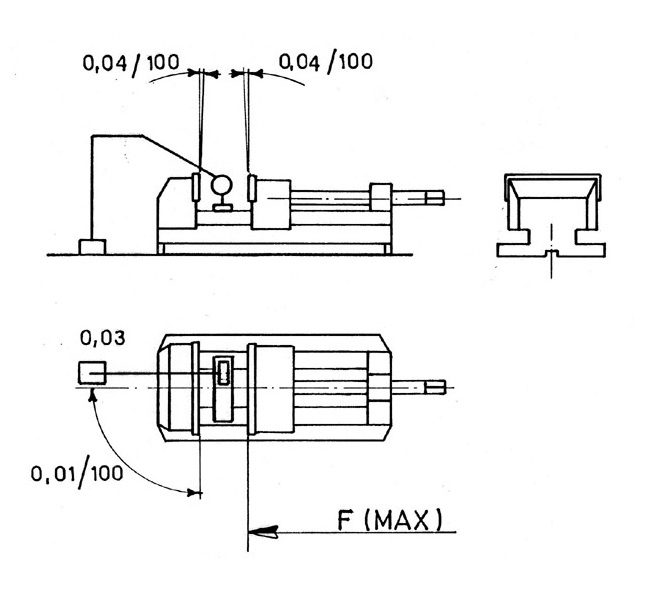

| TYPE | 125 | 150 | 175 |
|---|---|---|---|
| F (KN) | 30 | 30 | 30 |
Note: Features and dimensions are subject to change.
