The mechanical specifications of this vice are the same as those of the manual MTF/59 model.

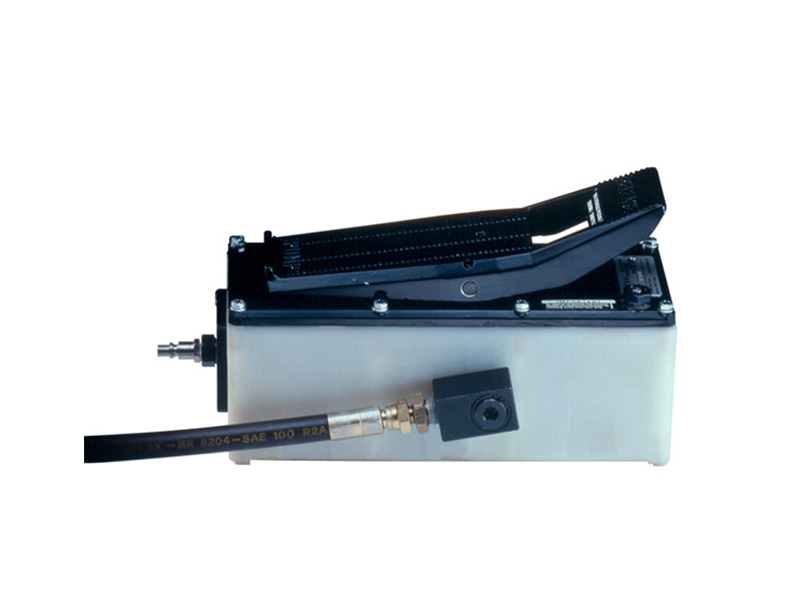

A hydraulic cylinder which is operated by a hydraulic pedal pump controlling the automatic opening and closing of the vice.
This feature makes this vice suitable for mass production machining operations. The hydraulic pedal pump operates on 4-8 bar compressed air. The 3000 kg clamping force is preset during testing and cannot be adjusted by the operator. The automatic closing stroke is about 10 mm with continuous 3 mm increments, in order to comply with accident prevention standards.
This model is fitted with ground flat jaws made of casehardened and tempered steel.

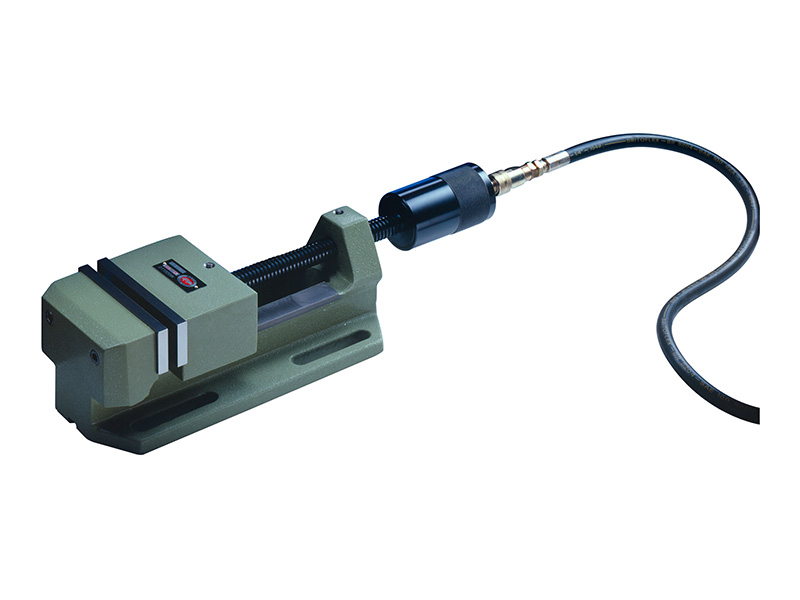

The vice comes ready for use with the preset pedal pump and fitted high pressure rubber tube.
Technical data
Material: Cast iron G26 UNI 5007
Breaking load: Rmin = 26
Elongation %: A% = 1
Brinnel hardness: HB = 190÷240

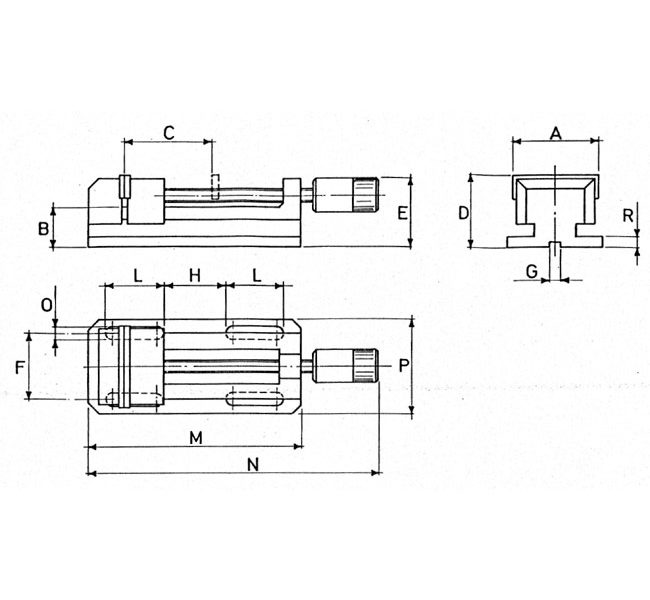

| TYPE | 125 | 150 | 175 |
|---|---|---|---|
| A | 125 | 150 | 175 |
| B | 76.5 | 70 | 70 |
| C | 140 | 155 | 190 |
| D | 130 | 130 | 130 |
| E | 131 | 131 | 131 |
| F | 104 | 120 | 140 |
| G | 16H7 | 16H7 | 16H7 |
| H | 84 | 102 | 73 |
| L | 92 | 102 | 127 |
| M | 345 | 375 | 418 |
| N | 505 | 550 | 593 |
| O | 17 | 17 | 17 |
| P | 140 | 170 | 190 |
| R | 18 | 19 | 20 |
| WEIGHT KG | 23 | 27 | 32 |
Note: Features and dimensions are subject to change.
| TYPE | 125 | 150 | 175 |
|---|---|---|---|
| AUTOMATIC STROKE | 10 | 10 | 10 |
| CLOSING TIME | 1" | 1" | 1" |

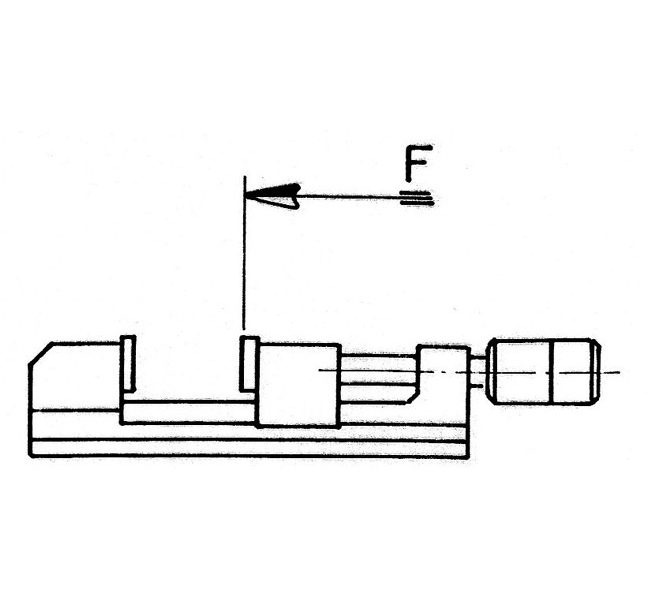

| F (KN) | 30 | 30 | 30 |
Note: Features and dimensions are subject to change.
