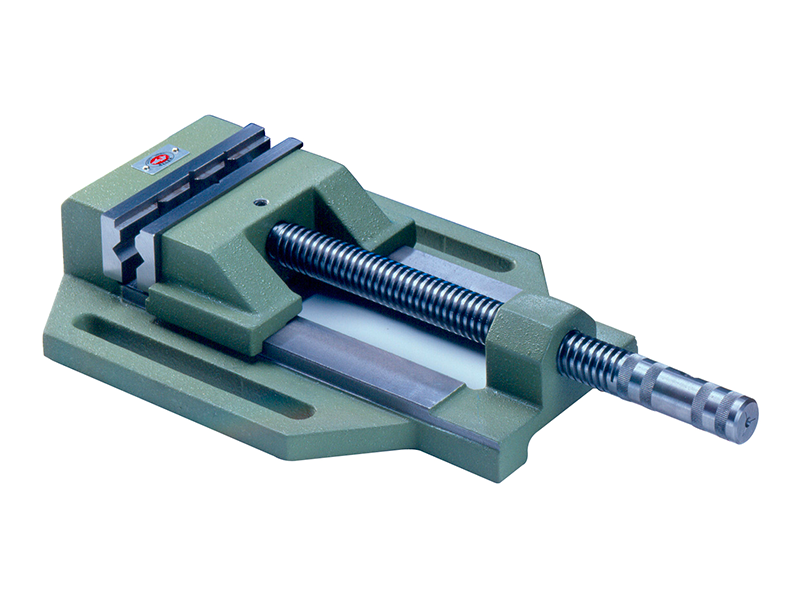

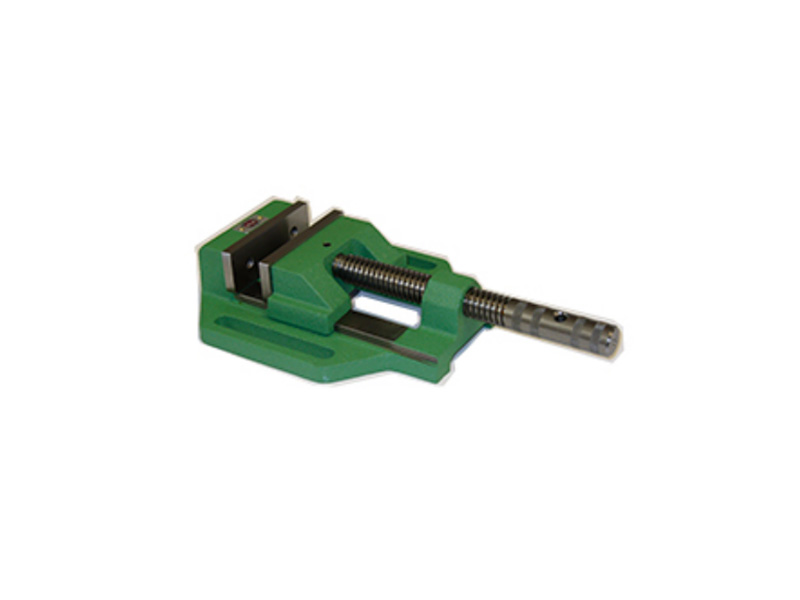

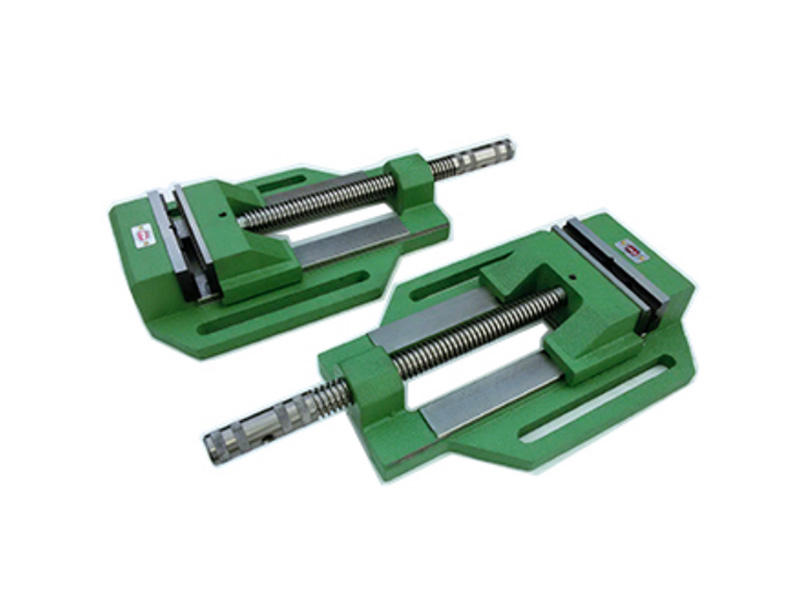

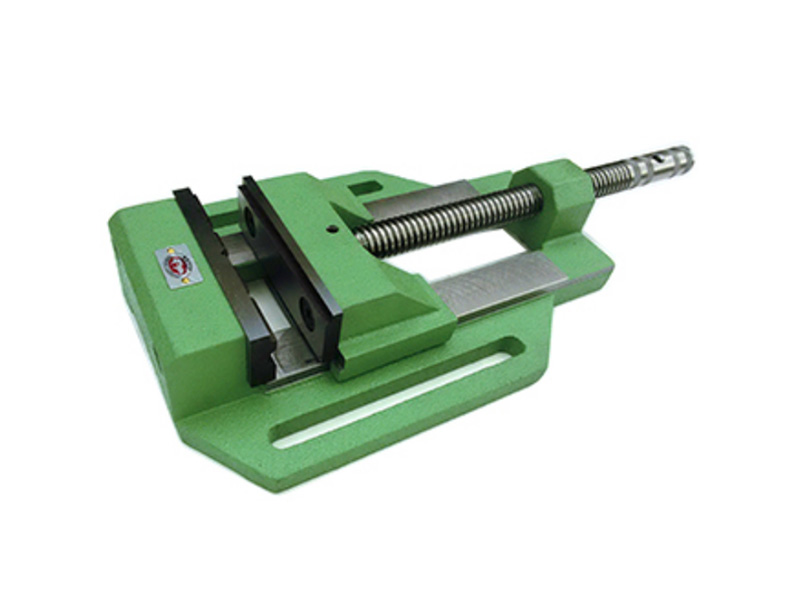

An extremely handy vice suitable for all light machining such as adjustments, drilling, threading with threading machines, cutting-off machines and all kinds of drilling machines. It can be supplied either with flat ground jaws made of casehardened and tempered steel or with indented prismatic jaws suitable to hold flat and cylindrical workpieces
Technical data
Material: Cast iron G26 UNI 5007
Breaking load: Rmin = 26
Elongation %: A% = 1
Brinell hardness: HB = 190÷240

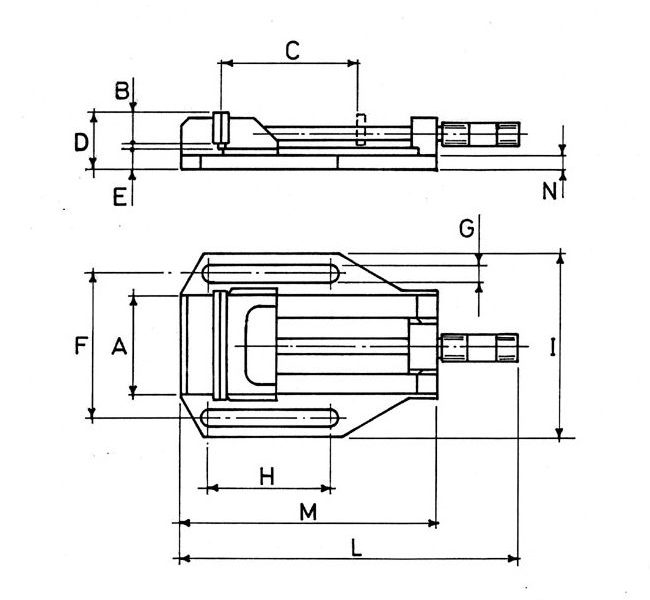

| TYPE | 80 | 110 | 130 |
|---|---|---|---|
| A | 82 | 112 | 132 |
| B | 30 | 40 | 40 |
| C | 50 | 120 | 190 |
| C* | 45 | 110 | 180 |
| C** | - | 115 | 185 |
| D | 56 | 65 | 71 |
| E | 25.5 | 25.5 | 28 |
| F | 117 | 161 | 184 |
| G | 10 | 16 | 16 |
| H | 55 | 100 | 160 |
| I | 156 | 200 | 230 |
| L | 230 | 330 | 430 |
| M | 140 | 240 | 334 |
| N | 13 | 16.5 | 18.5 |
| WEIGHT KG | 4 | 8 | 13 |
Note: Features and dimensions are subject to change.

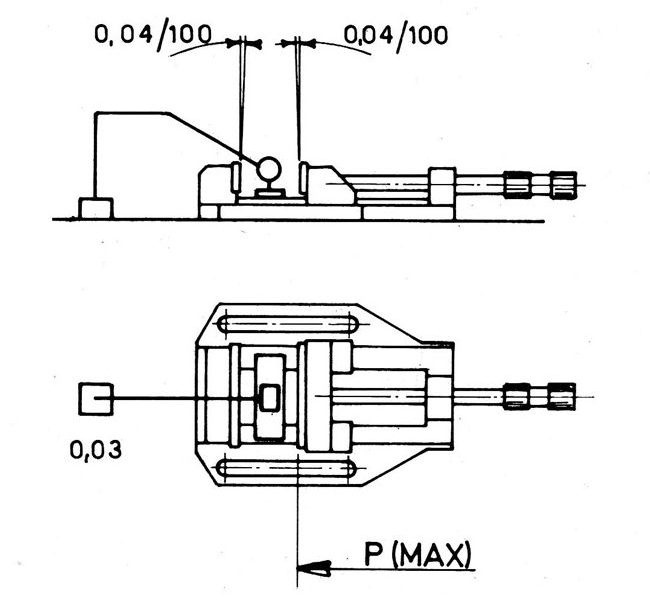

| TYPE | 80 | 110 | 130 |
|---|---|---|---|
| P (KN) | 5 | 12 | 12 |
Note: Features and dimensions are subject to change.
