Modular clamp parts

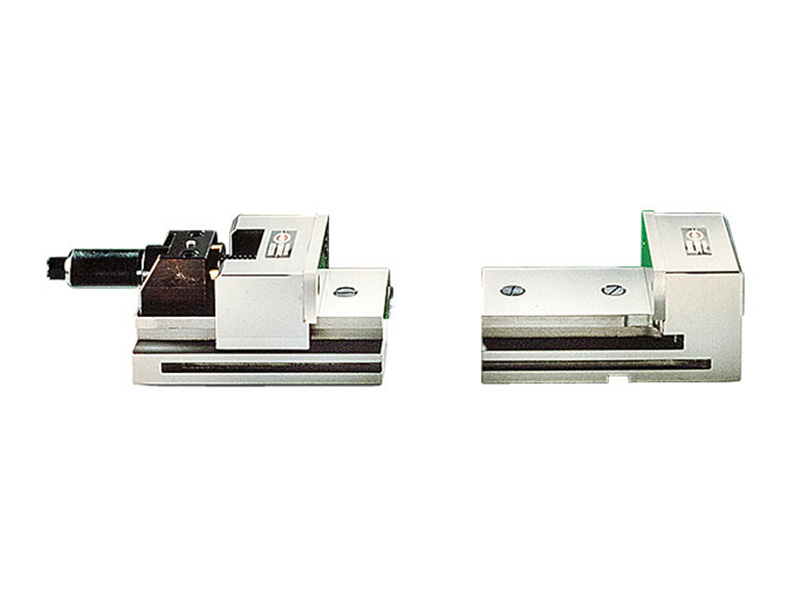

They are composed of the two main parts of the vice, i.e. the fixed head and the moving jaw. They have the same size and features of the MU/90 and are made of the same material which is GS 600 nodular cast iron.
They replace a complete vice when large openings are needed in order to clamp large pieces or to clamp a workpiece on different sides (see drawings).
The clamp parts can be fixed using side brackets or a series of holes set lengthwise. Thanks to their linear geometric shape, several clamp parts can be used aligned and side by side on the same table.
The alignment of the moving jaw and the fixed head is obtained by a longitudinal groove on the base.

Use: Clamping Threading Machine Milling Machine Drill Drill & Milling cutter Machining centres

Tipology: Mechanical

Request information

Go Back

Technical data

Material: Cast iron GS 600-3 UNI 4544
Breaking load: Rmin = 61
Elongation %: A% = 3
Brinell hardness: HB = 190÷270

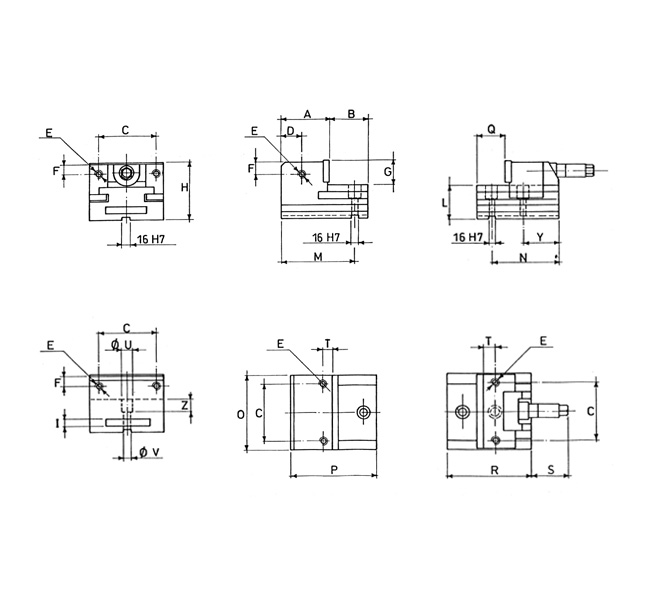

TYPE	100	125	150	175	200	TOLL.
A	74.5	76.5	86.5	96.5	106.5
B	75.5	63.5	63.5	3.5	63.5
C	80	100	110	135	160
D	30	32.5	37.5	45	50
E	M10	M10	M10	M10	M10
F	25	25	25	25	25
G	47	52	52	57	57
H	102	112	112	127	127
I	10	10	10	10	10
L	55	60	60	70	70	±0.02
M	100	110	120	130	140	±0.05
N	145	220	200	205	205	±0.05
O	100	125	150	175	200
P	150	150	170	180	190	±1.00
Q	77.5	100	100	100	100
R	195	240	240	240	240	±1.00
S	90	92	92	87	87
T	25	25	25	25	25
U	ø22	ø22	ø22	ø22	ø22
V	ø16	ø16	ø16	ø16	ø16
Z	32	32	32	32	32
Y	145	120	100	105	105
Fixed block weight. Kg	8	11	15	21	26
Moving block weight. kg	11	16	20	28	33
