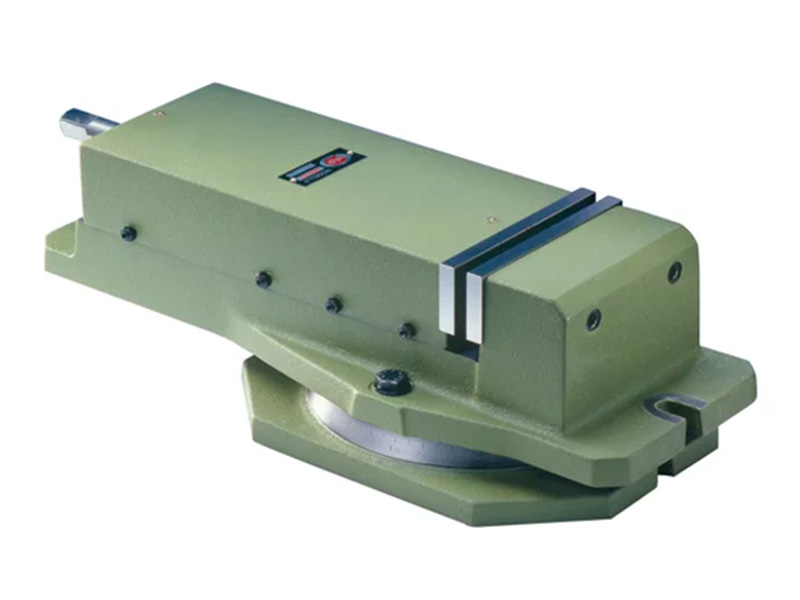

MDS/83 Mechanical vice

A particularly sturdy and compact vice suitable for a wide variety of operations with all kinds of machine tools, especially with milling machines.
The adjustable prismatic slideways ensure a highly accurate position of the moving parts even with maximum opening. In models 125, 150 and 200, a central slit on the base allows the tool to drill the piece from side to side without damaging the upper surface.
The vice can be supplied with a 360° graduated revolving base or without base; in the latter case the
perfect alignment of the jaw is secured by a longitudinal groove on the lower section.
This model is fitted with ground flat jaws made of casehardened and tempered steel. Prismatic jaws to clamp cylindrical pieces are available on request.

Use: Clamping Threading Machine Milling Machine Drill Drill & Milling cutter Machining centres

Tipology: Mechanical

Request information

Go Back

Technical data

Material: Cast iron G26 UNI 5007
Breaking load: Rmin = 26
Elongation %: A% = 1
Brinnel hardness: HB = 190÷240

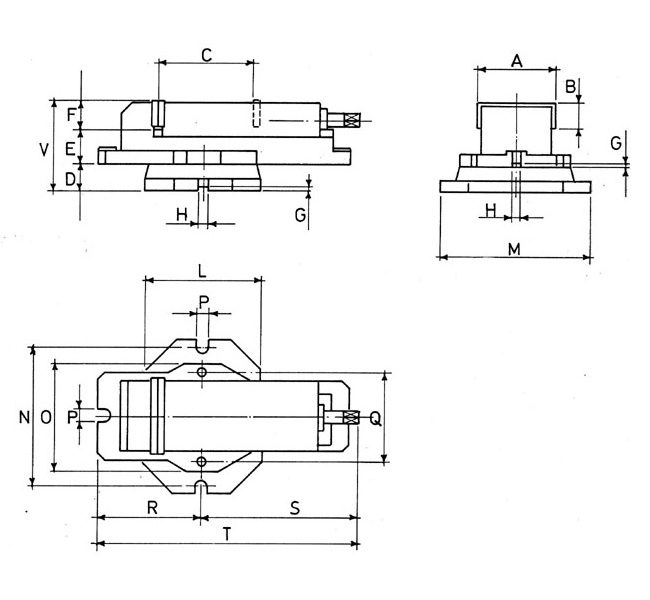

TYPE	100	125	150	200
A	100	125	150	200
B	40	50	50	50
C	135	159	184	235
D	35	39	39	46
E	34	64	64	70
F	44	54	54	53
G	6	6	6	6
H	16H7	16H7	16H7	16H7
L	200	200	240	310
M	260	260	300	370
N	236	230	266	336
O	162	181	213	271
P	15	17	17	17
Q	130	149	175	230
R	130	155	170	205
S	260	311	348	427
T	390	466	530	610
V	112	156	156	169
WEIGHT KG	21	36	49	91
