Prepared for mounting on modular vices model MAP/78-N, MOM/74-N, MIR/75-N, MRA/87-N, MU/90, MUC/91 and MUC/91D and on model vices MVC 200/1V. Thanks to their quick coupling system to the standard flat jaws mounted on the modular vices series, they allow the support of the pieces to be worked at a certain height from the vice plane, ensuring positioning precision and repeatability.

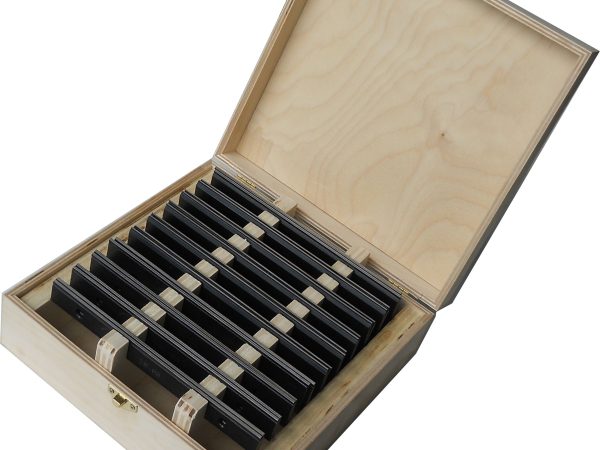

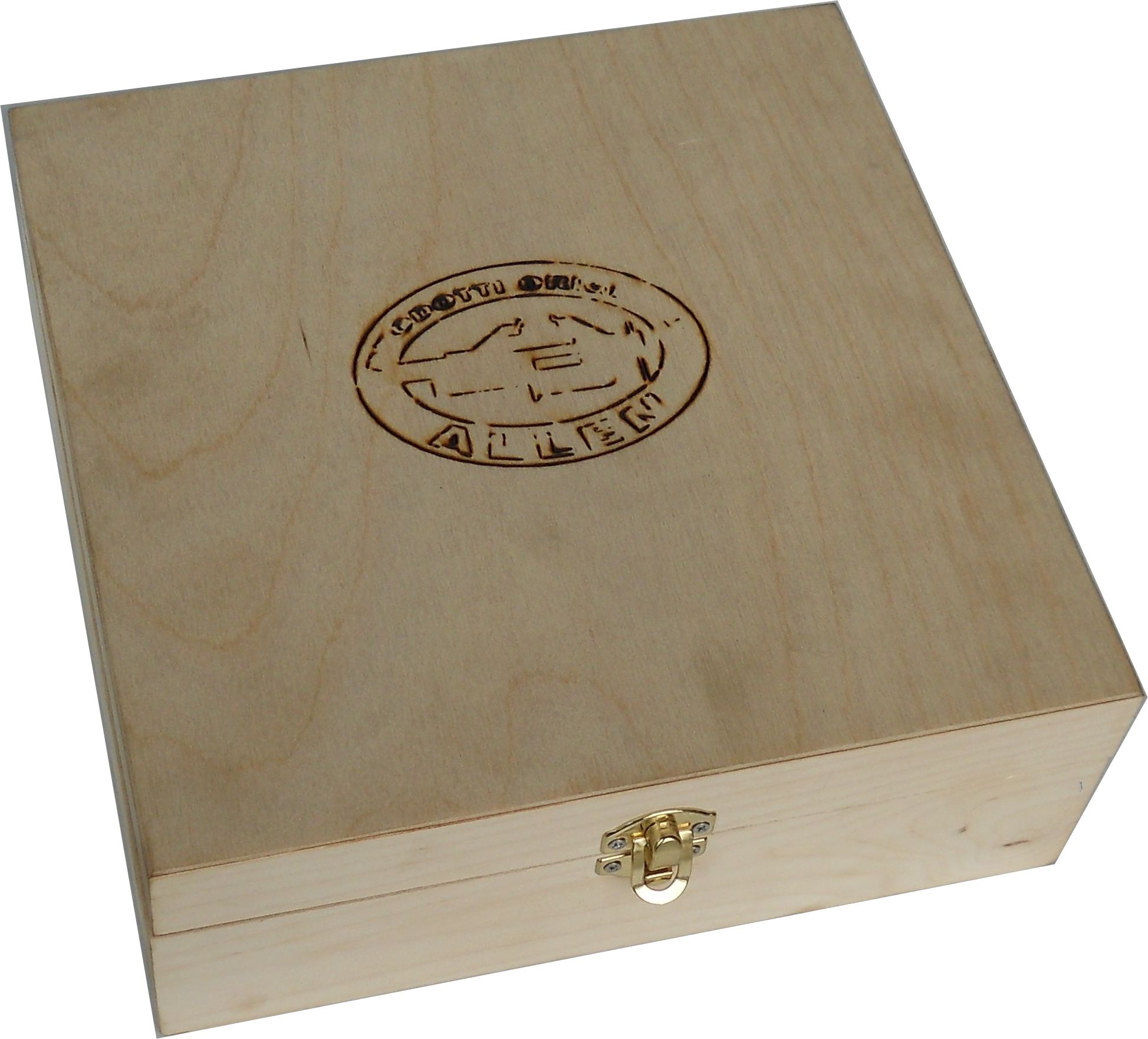

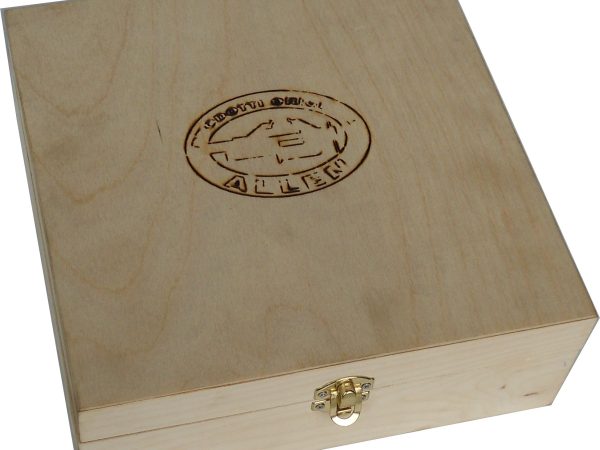

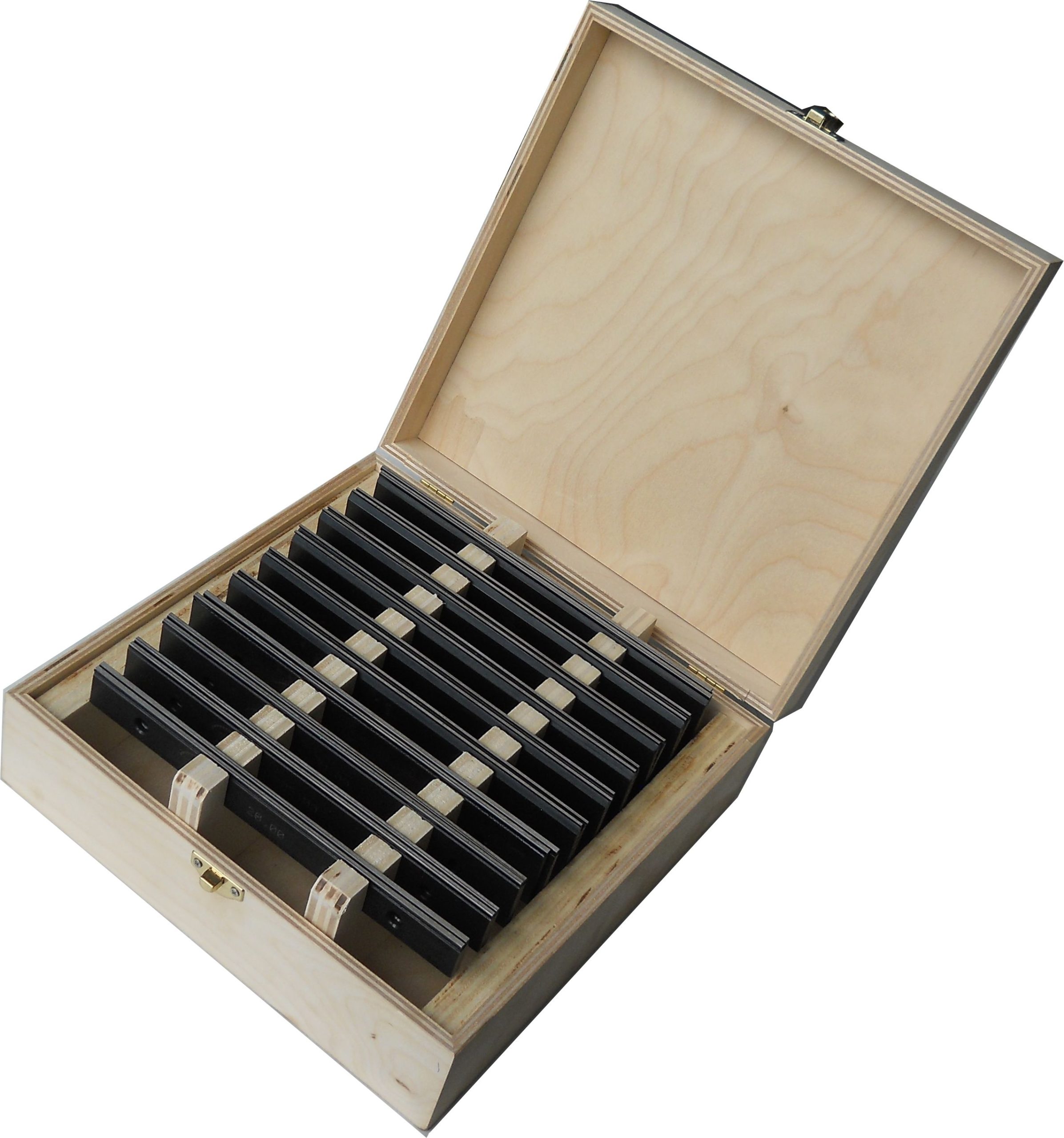

They are made of steel, while the area of backing of the working piece is made with a hardened cylinder, they are carefully grounded on height and are available in different sizes. They are available as a single pair and also in the complete package supplied in a special wooden box.
Technical data
Material: UNI C45 steel with hardened steel insertion

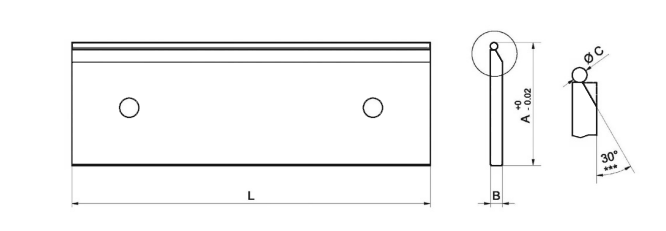

| TYPE/ L | CODE | A | B | C | *** |
|---|---|---|---|---|---|
| 150 /147 | 03 49 147 500 5 3 | 50 | 5 | 3 | ✓ |
| 150 /147 | 03 49 147 500 3 3 | 50 | 3 | 1.5 | ✓ |
| 150 /147 | 03 49 147 475 5 3 | 47.5 | 5 | 3 | ✓ |
| 150 /147 | 03 49 147 475 3 3 | 47.5 | 3 | 1.5 | ✓ |
| 150 /147 | 03 49 147 450 5 3 | 45 | 5 | 3 | ✓ |
| 150 /147 | 0 49 147 400 5 3 | 40 | 5 | 3 | ✓ |
| 150 /147 | 03 49 147 350 3 3 | 40 | 3 | 3 | X |
| 150 /147 | 03 49 147 300 3 3 | 30 | 3 | 3 | X |
| 150 /147 | 03 49 147 250 3 3 | 25 | 3 | 3 | X |
| 150 /147 | 03 49 147 200 3 3 | 20 | 3 | 3 | X |
| 190/ 187 | 03 49 187 625 5 3 | 62.5 | 5 | 3 | ✓ |
| 190/ 187 | 03 49 187 625 3 3 | 62.5 | 3 | 1.5 | ✓ |
| 190/ 187 | 03 49 187 600 5 3 | 60 | 5 | 3 | ✓ |
| 190/ 187 | 03 49 187 600 3 3 | 60 | 3 | 1.5 | ✓ |
| 190/ 187 | 03 49 187 575 5 3 | 57.5 | 5 | 3 | ✓ |
| 190/ 187 | 03 49 187 550 5 3 | 55 | 5 | 3 | ✓ |
| 190/ 187 | 03 49 187 500 5 3 | 50 | 5 | 3 | ✓ |
| 190/ 187 | 03 49 187 450 5 3 | 45 | 5 | 3 | ✓ |
| 190/ 187 | 03 49 187 400 5 3 | 40 | 5 | 3 | ✓ |
| 190/ 187 | 03 49 187 350 3 3 | 35 | 3 | 3 | X |
| 190/ 187 | 03 49 187 300 3 3 | 30 | 3 | 3 | X |
| 190/ 187 | 03 49 187 250 3 3 | 25 | 3 | 3 | X |
| 190/ 187 | 03 49 187 200 3 3 | 20 | 3 | 3 | X |
Note: Features and dimensions are subject to change.
*** ✓: With chamfer X: Chamfer not present
30 09 7015 Complete set type 150
30 09 7019 Complete set type 190
*** ✓: With chamfer X: Chamfer not present
30 09 7015 Complete set type 150
30 09 7019 Complete set type 190
