Suitable to be installed on modular vices model MAP/78-N, MOM/74-N, MIR/75-N, MRA/87-N, MU/90, MUC/91 and MUC/91D.
This intermediate jaw can be positioned between the standard jaws of the modular vices for multiple clamping of workpieces thus extending the field of application of the vice.
By using one or more intermediate jaws two or more pieces can be clamped at the same time. When combined with parallels and intermediate parallels it facilitates the mass production of flat pieces or right-angled pieces that need to be positioned at a certain height from the vice base, guaranteeing precision and repeatable positioning.
They are made of casehardened, tempered and properly ground steel.
Technical data
Material: UNI 18 NiCrMo5
Features: Hardened HRC 56/58 ±2 Steel

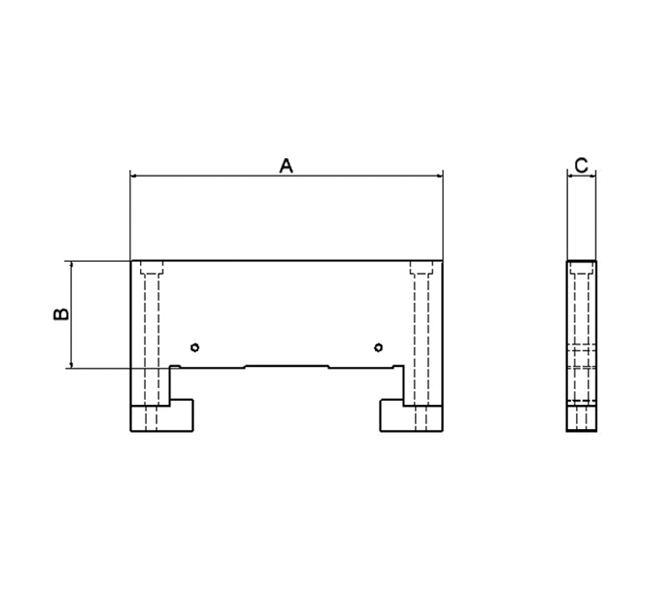

| TYPE | 100 | 125 | 150 | 175 | 200 |
|---|---|---|---|---|---|
| A | 99.5 | 124.5 | 149.5 | 174.5 | 199.5 |
| B | 46.5 | 51.5 | 51.5 | 56.5 | 56.5 |
| C | 14 | 14 | 14 | 14 | 14 |
Note: Features and dimensions are subject to change.
