These can be used to clamp cylindrical workpieces both horizontally and vertically thanks to the special 90° prismatic milling.
On the upper part there is an indentation that allows the holding and clamping of workpieces to be drilled or threaded as the lifted clamping of the piece means the tool can pass through the lower part of the piece without damaging the top part of the vice.
They are made with casehardened, tempered steel and all faces are ground. They can be fixed to the vice using the same screws used to fix the standard flat jaws normally installed on the vice.
Tipology:
Mechanical
Technical data
Material: UNI 18 NiCrMo5
Features: Hardened HRC 56/58 ±2 Steel

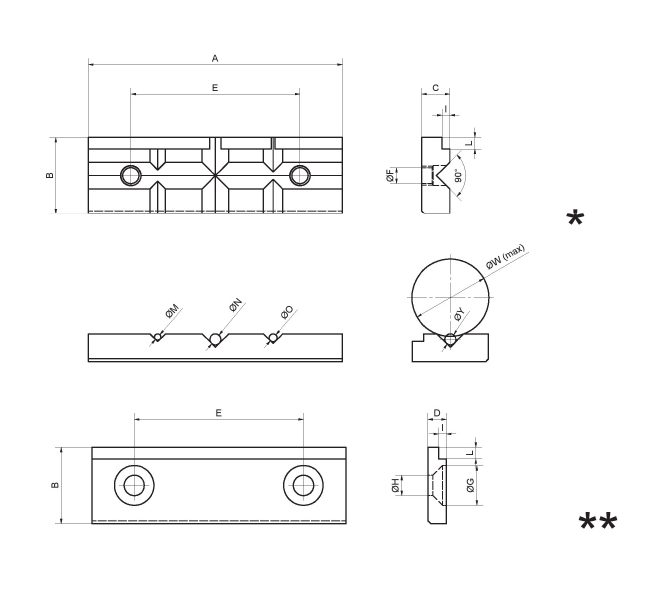

| TYPE | 110 | 130 |
|---|---|---|
| A | 112 | 132 |
| B | 39.6 | 39.6 |
| C | 14.5 | 14.5 |
| D | 9.5 | 9.5 |
| E | 65 | 88 |
| F | M10 | M10 |
| G | 20.5 | 20.5 |
| H | 10.5 | 10.5 |
| I | 4 | 4 |
| L | 6 | 6 |
| M | 3 | 3 |
| N | 5.5 | 5.5 |
| O | 4 | 4 |
| Y | 5.5 | 5.5 |
| W | 40 | 40 |
Note: Features and dimensions are subject to change.
*Fixed jaw
**Moving jaw
