These are the standard jaws normally installed on the vice when supplied.
They are made of casehardened, tempered steel and all faces are ground.
Tipology:
Mechanical
Technical data
Material: UNI 18 NiCrMo5
Features: Hardened HRC 56/58 ±2 Steel

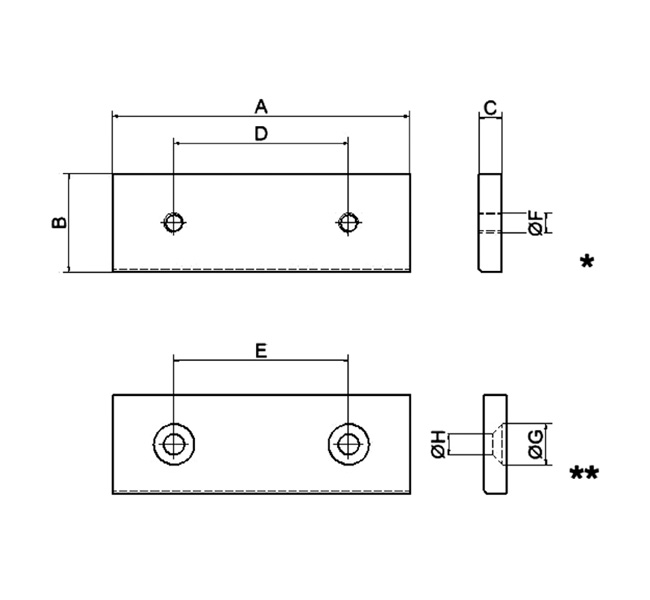

| TYPE | 80 | 100 | 110 | 125 | 130 | 150 | 175 | 200 |
|---|---|---|---|---|---|---|---|---|
| A | 82 | 99.5 | 112 | 124.5 | 132 | 149.5 | 174.5 | 199.5 |
| B | 29.6 | 39.6 | 39.5 | 49.6 | 39.6 | 49.6 | 49.6 | 49.6 |
| C | 7.5 | 9.5 | 9.5 | 11.5 | 9.5 | 11.5 | 11.5 | 11.5 |
| D | 40 | 56 | 65 | 65 | 88 | 88 | 102 | 110 |
| E | 40 | 56 | 65 | 65 | 88 | 88 | 102 | 110 |
| F | M6 | M8 | M10 | M10 | M10 | M10 | M10 | M10 |
| G | 12.5 | 16.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 |
| H | 6.5 | 8.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
Note: Features and dimensions are subject to change.
*Fixed jaw
**Moving jaw
