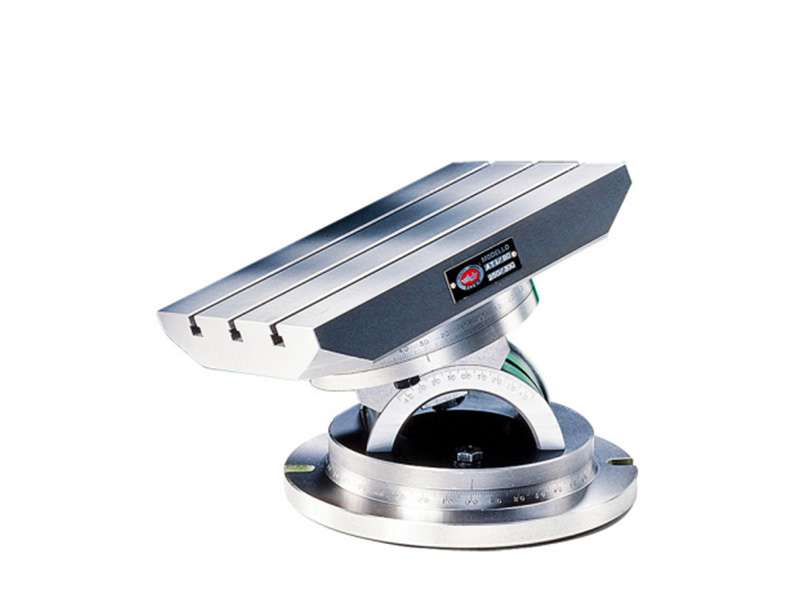

This product consists of a table with “T slots” and grooves for fixing and alignment of pieces mounted on a threemovement revolving and tilting unit. The main feature of this equipment is that the workpiece can be set up in any position without having to be moved from the initial position and clamping.
This is particularly useful when the piece is irregularly shaped or when work has to be carried out on different
surfaces.
This equipment can be tilted to 45° compared to the “0°” position in both directions and can rotate about itself through 360° a nd the base can rotate the entire unit through 360°.
There are two different locking systems for rotation and tilting. All faces are properly ground.
Technical data
Material: G26 cast iron UNI 5007
Breacking load Rmin = 26
Elongation %: A% = 1
Brinell hardness: HB = 190÷240

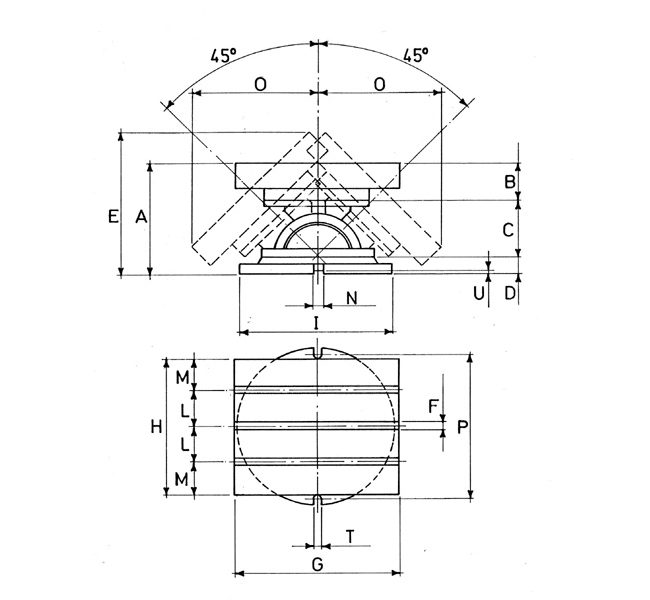

| TYPE | 200X280 | 250X300 | 300X350 |
|---|---|---|---|
| A | 190 | 209 | 239 |
| B | 57 | 71 | 73 |
| C | 105 | 106 | 132 |
| D | 28 | 32 | 34 |
| E | 247 | 335 | 380 |
| F | 10H7 | 10H7 | 10H7 |
| G | 280 | 300 | 355 |
| H | 205 | 250 | 300 |
| I | 280 | 280 | 350 |
| L | 54 | 65 | 75 |
| M | 51 | 60 | 75 |
| N | 16H7 | 16H7 | 16H7 |
| O | 250 | 295 | 335 |
| P | 230 | 250 | 316 |
| T | 17 | 17 | 17 |
| U | 6 | 6 | 6 |
| WEIGHT KG | 27 | 45 | 66 |
Note: Features and dimensions are subject to change.

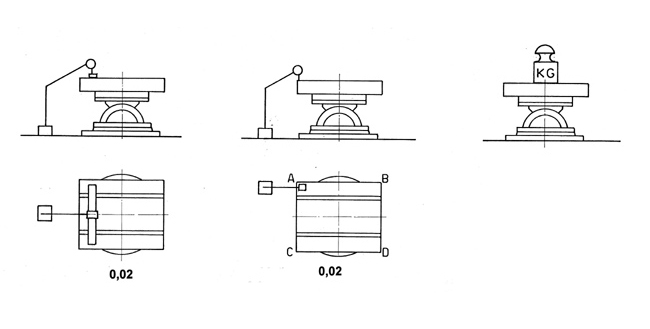

| TYPE | 200X280 | 250X300 | 300X350 |
|---|---|---|---|
| KG | 50 | 50 | 50 |
Note: Features and dimensions are subject to change.
