These blocks can be fitted into the slots which can be found on the lower part of all our equipment for a fast and perfect alignment of the equipment and vices with the table of the machine tool.
Different sizes are available according to the size of the slots of the machine tool on which our equipment will be installed.
They are made of casehardened, tempered and ground steel.
Tipology:
Mechanical
Technical data
Material: UNI 18 NiCrMo5
Features: Hardened HRC 56/58 ±2 Steel

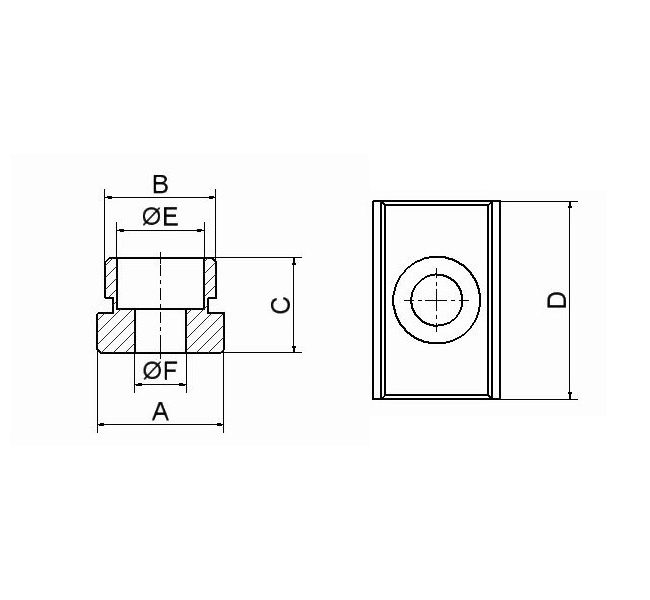

| TYPE | 16-10 | 16-12 | 16-14 | 16-16 | 16-18 | 16-20 | 16-22 |
|---|---|---|---|---|---|---|---|
| A | 16H7 | 16H7 | 16H7 | 16H7 | 16H7 | 16H7 | 16H7 |
| B | 10H7 | 12H7 | 14H7 | 16H7 | 18H7 | 20H7 | 22H7 |
| C | 10 | 10 | 10 | 10 | 10 | 12 | 12 |
| D | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| E | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| F | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 |
Note: Features and dimensions are subject to change.
